1080 Car Mounted Camera AHD Infrared Night Vision Waterproof Closed-Circuit Television Monitoring
Starlight Waterproof Vehicle Side Camera Function:
6 eyeglass lenses. High resolution, clear and vivid images.
High signal-to-noise ratio. The image looks clear and pleasant.
Supports infrared function.High reliability, IP69K.
Adopting a wide voltage design, the power supply is safer and more stable.
★ Support Coaxial HD output, high resolution achieve to 720P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability
★ Side or Rear view camera,commonly use in schoolbus,bus,Van,fire truck vehicles
Starlight AHD Truck Side View Vehicle CCTV Camera Parameters:
| Image sensor | CMOS | Starlight CMOS | CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching |
| sync system | Internal |
| Backlight compensation | AUTO |
| White balance | AUTO |
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video output | AHD(default)Standard,720P output | AHD(default)Standard,1080P output |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional |
| IR leds Qty | 5pcs LEDs |
| IR distance | ≤3 meters |
| waterproof grade | IP69K |
| Operating Temp. | -20°C~+70°C, RH95%MAX |
| Storage Temp | -30°C~+80°C, RH95%MAX |
| Power supply | DC12V±10% |
| Power consumption | ≤2W |

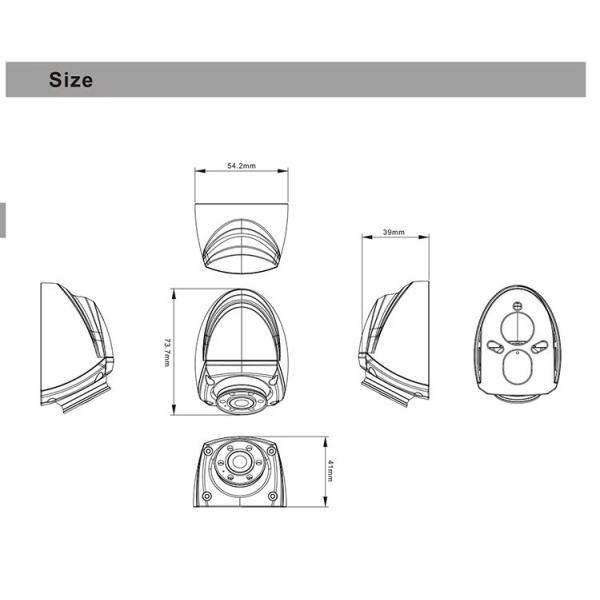

| Dimension | 73.7*54*41(mm) |
The Advantages of Vanwin Camera:
1. Complete range of styles
1. Private model: Exclusive agency, unique appearance and design, differentiated competition can attract customers and increase product added value; 170°/180°/190° lens, providing full range of angles as much as possible
2. Hot-selling model: high cost performance, good value for money
3. Network infrared model: can work normally in dark or dim light environment; night vision function
2. High-end quality, complete solutions
1. Driving recorder: AI technology with built-in storage function, convenient.
2. Surveillance camera: can be used with DVR or monitor, large storage capacity, suitable for trucks, buses and public buses, etc.
3. Rear view camera: increase the field of view, improve safety and convenience
3. Strict testing process
1. Camera aging test
2. High and low temperature test
3. Waterproof vacuum test
4. Anti-vibration test
5. Salt spray test
6. Focusing technology test
FAQ:
Q1: What are your packaging conditions?
A1: Usually, we package goods in neutral white boxes and brown cardboard boxes. If you have a legally registered patent and receive your authorization letter, we can package the goods in your brand packaging box.
Q2: What is the record coverage rate when recording with SD card and HDD?
A2: The SD card and HDD will cycle and record with each other. When they are full, they will delete the original video records separately.
Q3: Do you test all of your goods before delivery?
A3: Yes, we conducted 100% testing before delivery
Q4: How is your delivery time?
A4: Sample order: 2-3 days, 100 set order: 2 weeks, 1000 set order: 4 weeks
Q5: Can technical support be provided?
A5: Yes, we can provide professional technical support before and after sales
Q6: Can you arrange shipment for us?
A6: Yes, we have cooperative freight forwarders who can ensure fast and safe delivery at reasonable costs.
